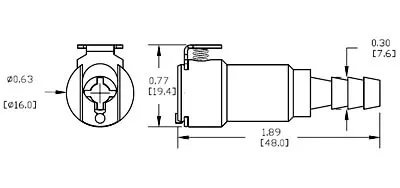

All measurements are in inches(millimeters) unless otherwise specified.

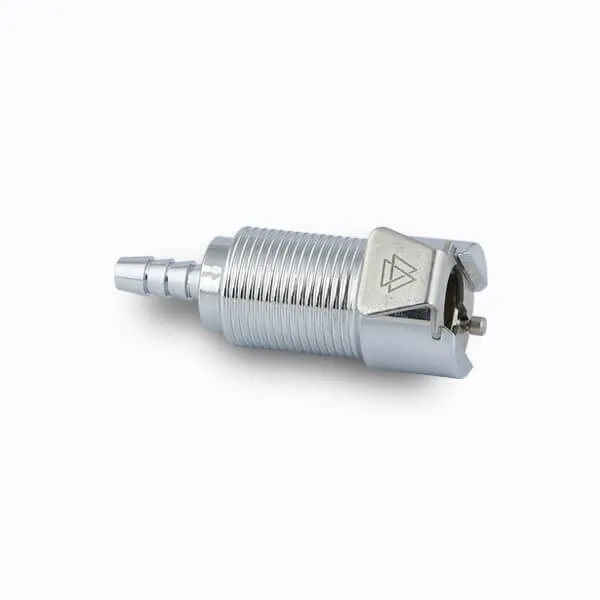

VCM 1704 1/4" ID
IN LINE COUPLING BODY
Part #: VCMD1704Connection Type: Hose Barb
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: In Line Hose Barb
Size:1/4" ID (6.4mm ID)
Valve Option: With Shut Off Valve
Components:
Main Body: Chrome Plated Brass.Valve: Natural Acetal.
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility, Please refer selection of O-Ring
Submit Enquiry
Download TDS
Request for Drawing
IN LINE COUPLING BODY
Part #: VCM1704Connection Type: Hose Barb
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: In Line Hose Barb
Size: 1/4" ID (6.4mm ID)
Valve Option: Non-Valve
Components:
Main Body: Chrome Plated Brass.Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Submit Enquiry
Download TDS
- The Quick Connector Couplings help to improve the performance of your fluid handling solutions with their built in shut valve providing easy flow control and realizes a perfect seal and provides the system a spill proof connection. They are also available with and without valves.
- Product focuses on decreasing spillage, perhaps the Quick Connector Coupling are manufactured with creative non-spill innovation. They can be easily used in any distribution system. Also, improves the efficiency of your Products & maximises system’s productivity.
- Innovatively designed Quick Connector Couplings, make it simple to connect and disconnect tubing, even when you’ve your gloves on with its one hand operated Thumb Latch.
- Highly reliable, and precisely engineered Quick Connector Coupling for secure associations in any process. The quick connector couplings are available with and 1/8 NPT threaded connections.
- Products accurately manufactured with your required specifications, and engineered with a vision of being compatible with all types of tubing systems, various types of Mountings & threads fittings which can be chosen from Insync’s wide variety of offerings to be flawlessly placed into any systems.
- Innovatively designed Quick Connector Couplings highlight ergonomic plans, which make it simple to connect and disconnect the couplings that enable single hand operation.

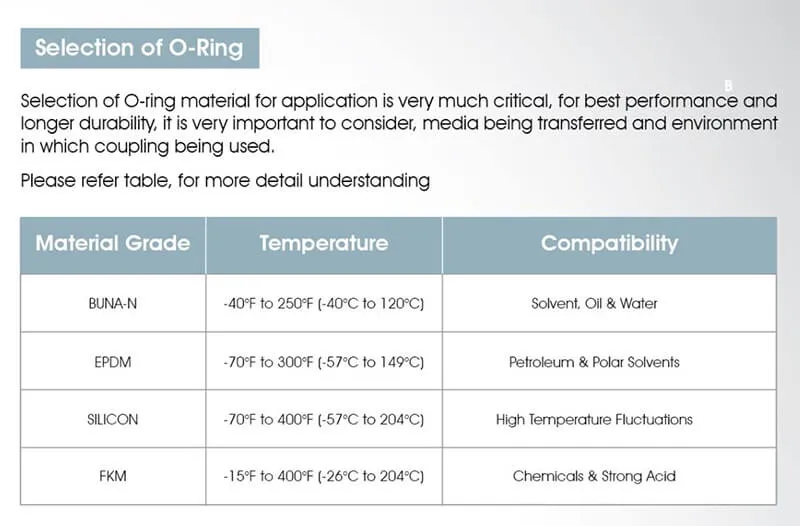

| Material Grade | Temperature | Compatibility |
|---|---|---|
| BUNA- N | -40° F to 250° F | Solvent Oil & Water |
| EPDM | -70° F to 300° F | Petroleum and Polar Solvent |
| SILICON | 70° F to 400° F | High Temperature Fluctuation |
| FKM | -15° F to 400° F | Chemical and Strong Acid |
