PRODUCT DESCRIPTION

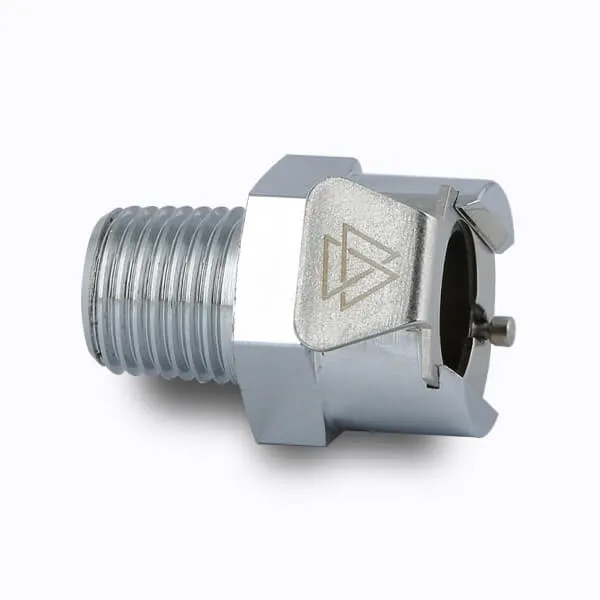

VCL 10006 3/8 BSPT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

VCL 10006 3/8" BSPT

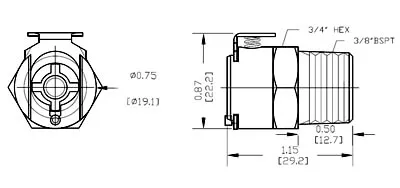

3/8 BSPT WITH-VALVED COUPLING BODY

Part #: VCLD10006 BSPT
Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 3/8” BSPT
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

vcld10006bspt Submit Enquiry Download TDS Request for Drawing

3/8 BSPT NON-VALVED COUPLING BODY

Part #: VCL10006BSPT
Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 3/8” BSPT
Valve Option: Non-Valved

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

vcl10006bspt Submit Enquiry Download TDS
  • The BSPT Brass Quick Disconnect main body comprises of chrome plated brass finish.
  • With the use of a shut off valve on both the ends BSPT Brass Quick Disconnect Coupling provides a spill proof connection that eliminates any liquid leakage issue.
  • The thumb latch button makes the connection and disconnection of connectors easier with one hand accessibility to give the operator utmost accessibility.
  • These consist of the body, spring latch and other mechanism made out of complete brass stainless steel and the valves are made using PVDF plastic or acetal to provide a secure connection.
  • Products provided by insync are highly valuable for the system which enhances application process and provides compliance to fluid handling lines with the use of Quick Connector and Disconnector couplings.
  • O-ring is a part which is seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface. The material used in the making of these O-ring includes prime quality industrial grade white nitrile that creates a grip between the systems.
Material Grade Temperature Compatibility
BUNA- N -40° F to 250° F Solvent Oil & Water
EPDM -70° F to 300° F Petroleum and Polar Solvent
SILICON 70° F to 400° F High Temperature Fluctuation
FKM -15° F to 400° F Chemical and Strong Acid
