PRODUCT DESCRIPTION

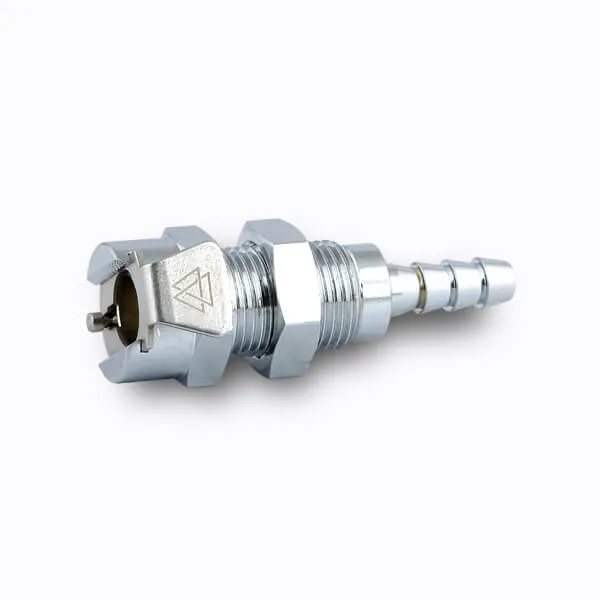

VCL 16005 5/16 ID PANEL MOUNT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

VCL 16005 5/16" ID

WITH VALVE
NON-VALVE

PANEL MOUNT COUPLING BODY

Part #: VCLD16005
Connection Type: Hose Barb
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Size5/16" ID (7.9mm ID)
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

vcld16005

Submit Enquiry Download TDS Request for Drawing

PANEL MOUNT COUPLING BODY

Part #: VCL16005
Connection Type: Hose Barb
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Size5/16" ID (7.9mm ID)
Valve Option: Non-Valve

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

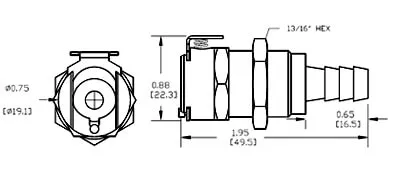

vcl16005

Submit Enquiry Download TDS

panelopening

About Insync

Insync Engineering manufactures reliable, safer and highly compatible Quick Disconnect Fittings which are produced using superior-quality Chrome Plated Brass for all types of connections which help fluid transfer lines to increase efficiency. Insync’s Quick Disconnect Fittings are manufactured with the goal of making the system more convenient and highly efficient to provide complete protection.

Insync Engineering is an ISO Certified Company which produces high-quality products which are safe, robust, strong and durable to keep your systems up and running. Insync has a broad experience in this industry for decades supplying high-quality Quick Disconnect Fittings to industries in India, Europe and USA. Insync Engineering are heading towards becoming
leading manufacturers of Quick Disconnect Fittings, Couplings, Connectors and Disconnectors
with continuous efforts in providing top-notch couplings to Fluid Handling Solutions for various life sciences. These Couplings are widely used in the leading industries like Pharma, Biomedical, Industrial Sectors and also by Fuel Lines Manufacturers across the world.
