PRODUCT DESCRIPTION

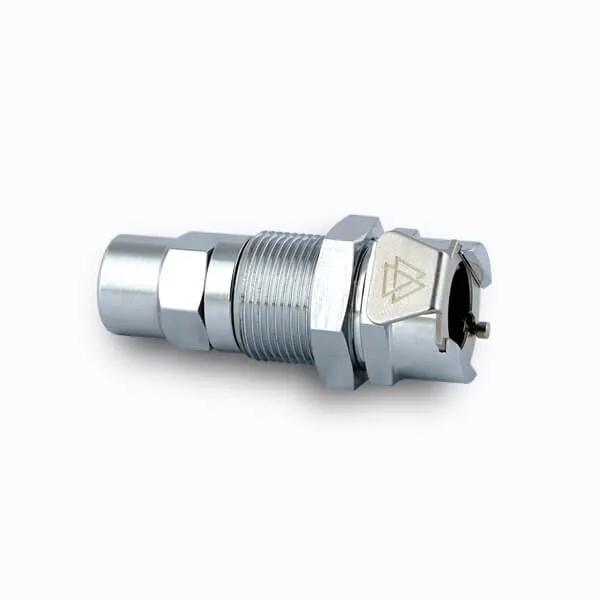

VCL 12006 3/8 OD,0.25 ID PANEL MOUNT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

VCL 12006 3/8" OD,0.25 ID

WITH VALVE
NON-VALVE

PANEL MOUNT COUPLING BODY

Part #: VCLD12006
Connection Type: Ferrule-less Tube Fitting
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Tube Size 3/8" OD, .25" ID (9.5mm OD, 6.4mm ID)
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

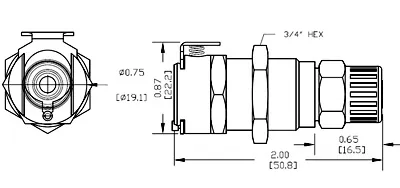

vcld12006

Submit Enquiry Download TDS Request for Drawing

PANEL MOUNT COUPLING BODY

Part #: VCL12006
Connection Type: Ferrule-less Tube Fitting
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Tube Size 3/8" OD, .25" ID (9.5mm OD, 6.4mm ID)
Valve Option: Non-Valved

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

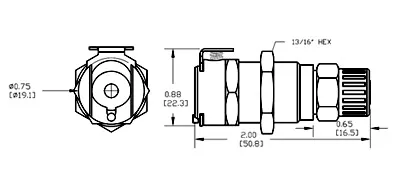

vcl12006

Submit Enquiry Download TDS

panelopening
