All measurements are in inches(millimeters) unless otherwise specified.
VCL 13004 1/4" OD,0.17 ID

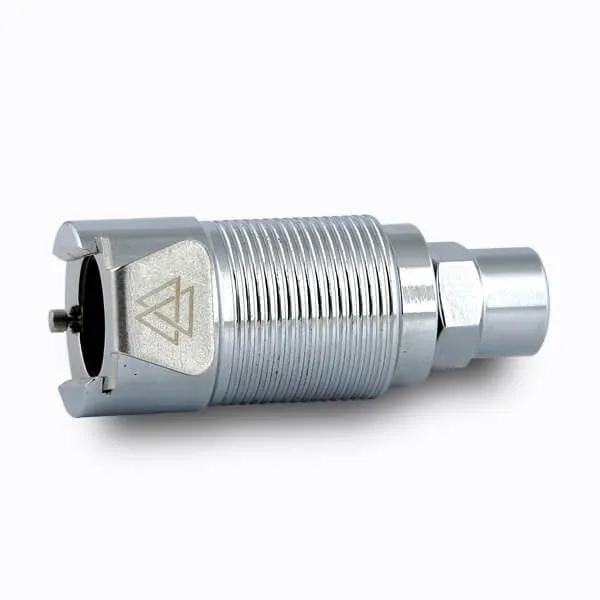

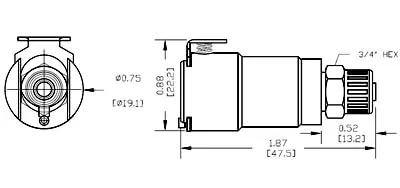

IN LINE COUPLING BODY
Part #: VCLD13004Connection Type: Ferrule-less Tube Fitting
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Inline Ferrule-less Polytube Fitting
Tube Size1/4" OD, .17" ID (6.4mm OD, 4.3mm ID)
Valve Option: With Shut Off Valve
Components:
Main Body: Chrome Plated Brass.Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring
Submit Enquiry
Download TDS
Request for Drawing

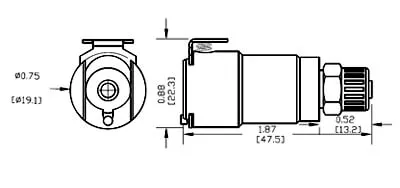

IN LINE COUPLING BODY
Part #: VCL13004Connection Type: Ferrule-less Tube Fitting
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Inline Ferruleless Polytube Fitting
Tube Size1/4" OD, .17" ID (6.4mm OD, 4.3mm ID)
Valve Option: Non-Valved
Components:
Main Body: Chrome Plated Brass.Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.
