PRODUCT DESCRIPTION

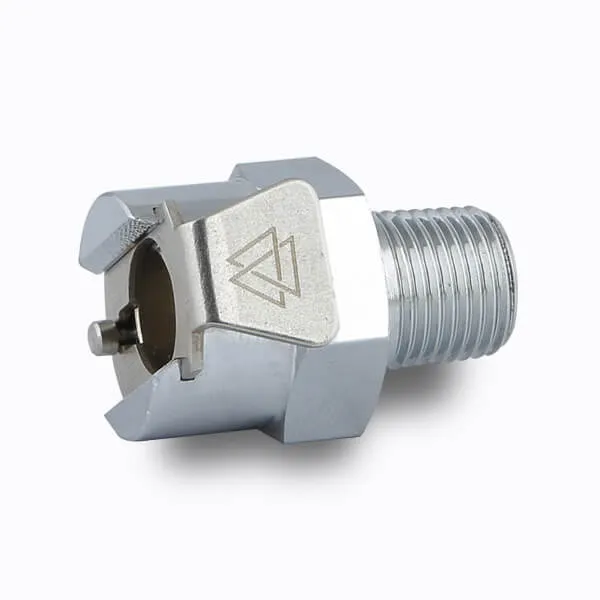

VCL 10004 1/4 NPT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

VCL 10004 1/4" NPT

WITH VALVE
NON-VALVE

1/4 NPT COUPLING BODY

Part #: VCMD10004
Connection Type: Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: 1/4 NPT
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

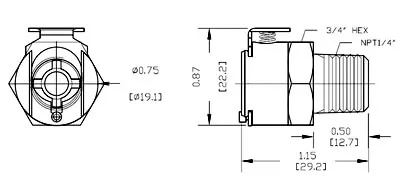

vcld10004

Submit Enquiry Download TDS Request for Drawing

1/4 NPT COUPLING BODY

Part #: VCMD10004
Connection Type: Panel Mount Ferrule-less polytube
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: 1/4 NPT
Valve Option: Non-Valve

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

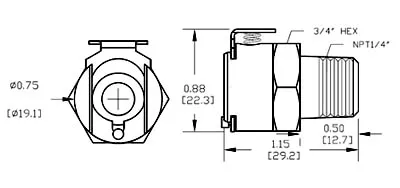

vcl10004

Submit Enquiry Download TDS

panelopening
