PRODUCT DESCRIPTION

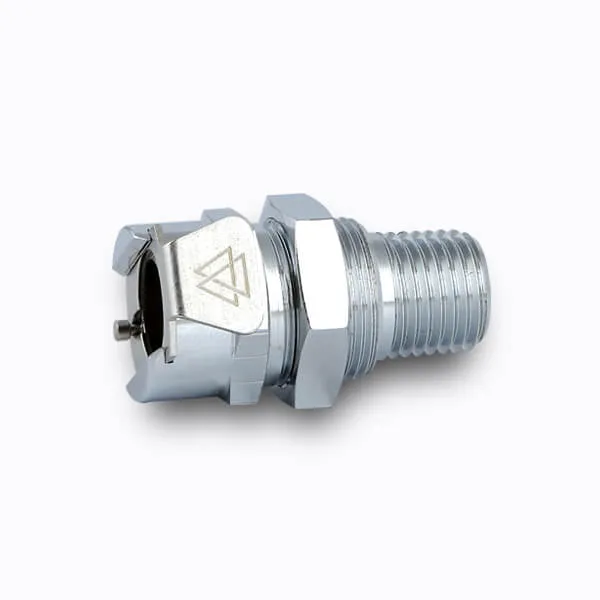

VCL 15004 1/4 NPT PANEL MOUNT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

VCL 15004 1/4" NPT

WITH VALVE
NON-VALVE

PANEL MOUNT COUPLING BODY

Part #: VCLD15004
Connection Type: Hose Barb Male Thread
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

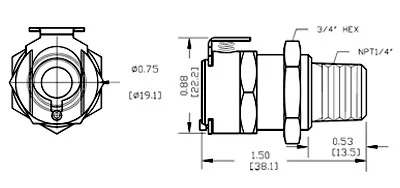

vcld15004

Submit Enquiry Download TDS Request for Drawing

PANEL MOUNT COUPLING BODY

Part #: VCL15004
Connection Type: Hose Barb Male Thread
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Panel Mount
Valve Option: Non-Valve

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

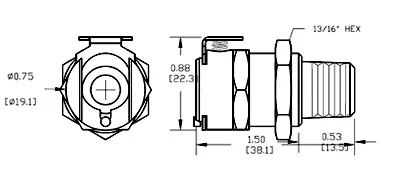

vcl15004

Submit Enquiry Download TDS

panelopening
