All measurements are in inches(millimeters) unless otherwise specified.
VCL 10006 3/8" NPT

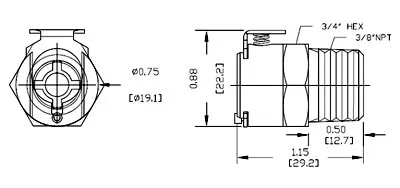

3/8 NPT COUPLING BODY
Part #: VCLD16006Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 3/8” NPT
Valve Option: With Shut Off Valve
Components:
Main Body: Chrome Plated Brass.Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring
Submit Enquiry
Download TDS
Request for Drawing

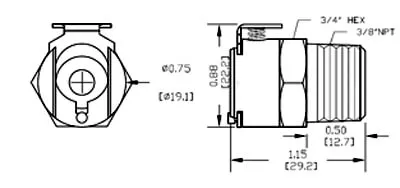

3/8 NPT COUPLING BODYY
Part #: VCL10006Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 3/8 NPT
Valve Option: Non-Valved
Components:
Main Body: Chrome Plated Brass.Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.
Submit Enquiry
Download TDS

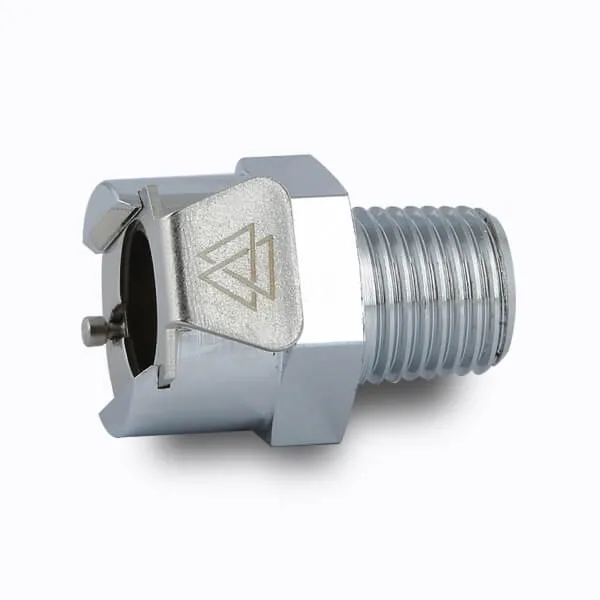

- Insync’s In Line Hose Barb established built-in shutoff valves to prevent product spills.
- It’s an easy-to-use, push-button thumb latch for quick connecting and disconnecting which makes the connection highly reliable, safe and secure to protect the transmission lines.
- It can withstand a temperature of 40°F to 180°F (-40°C to 82°C) and a pressure range of vacuum to 250 psi, 17.3 bar.
- The In Line Hose Barb has a material finish of Chrome Plated which makes it’s design robust, innovative and steady to make the lines more efficient.
- Insync’s In Line Hose Barb is available in two variants: valved and non-valved respectively.
- They are produced and distributed for a variety of general-purpose applications for many industries.
- One-hand connection and disconnection make Insync's products an ideal choice for easy usage and manufacturing applications.
