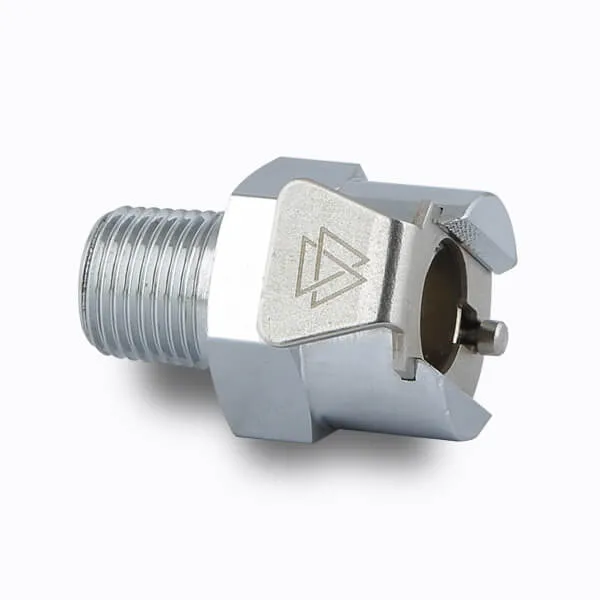

VCL 10004 1/4 BSPT 3/8 NPT COUPLING BODY and by Insync Engineering

All measurements are in inches(millimeters) unless otherwise specified.

quick disconnect couplings

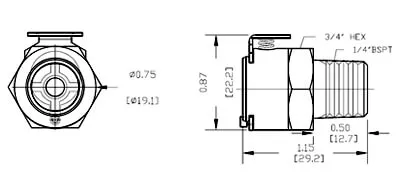

VCL 10004 1/4" BSPT

WITH VALVE
NON-VALVE

3/8 NPT COUPLING BODY

Part #: VCL10004BSPT
Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 3/8 NPT
Valve Option: With Shut Off Valve

Components:

Main Body: Chrome Plated Brass.
Valve: Natural Acetal .
Thumb Latch: Stainless Steel.
Valve Spring: Stainless Steel.
External Spring: Stainless Steel.
Seal: Nitrile
For Media Compatibility,Please refer selection of O-Ring

vcld10004bspt

Submit Enquiry Download TDS Request for Drawing

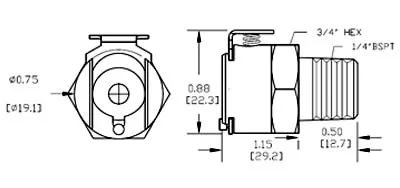

1/4 BSPT COUPLING BODY

Part #: VCL10004BSPT
Connection Type: In Line Pipe Threaded
Material: Brass
Material Finish: Chrome Plated
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temp Range: -40°F to 180°F (-40°C to 82°C)
Mounting Option: Thread 1/4 BSPT
Valve Option: Non-Valve

Components:

Main Body: Chrome Plated Brass.
Thumb Latch: Stainless Steel.
External Spring: Stainless Steel.
Seal: : Nitrile.

vcl10004bspt

Submit Enquiry Download TDS
